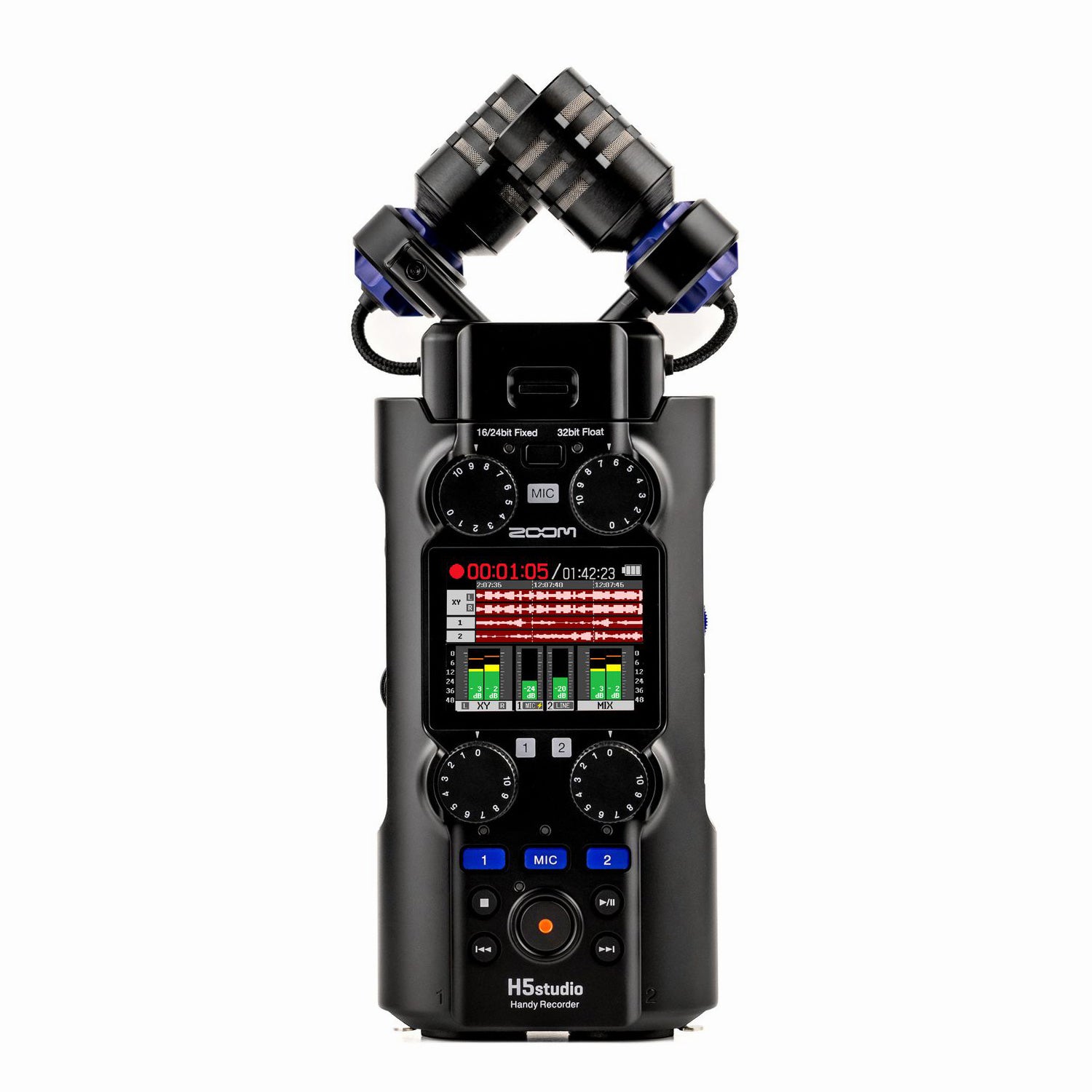

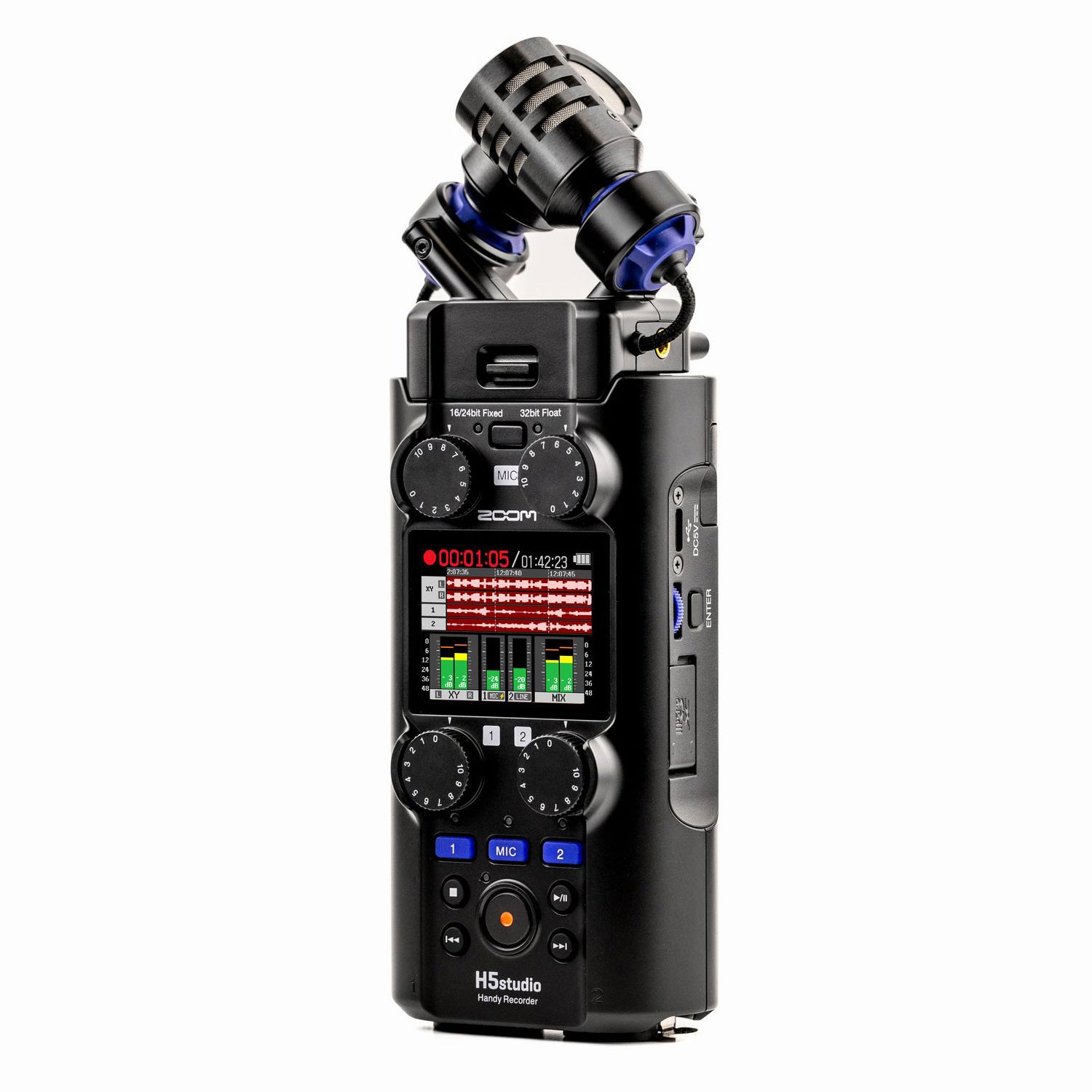

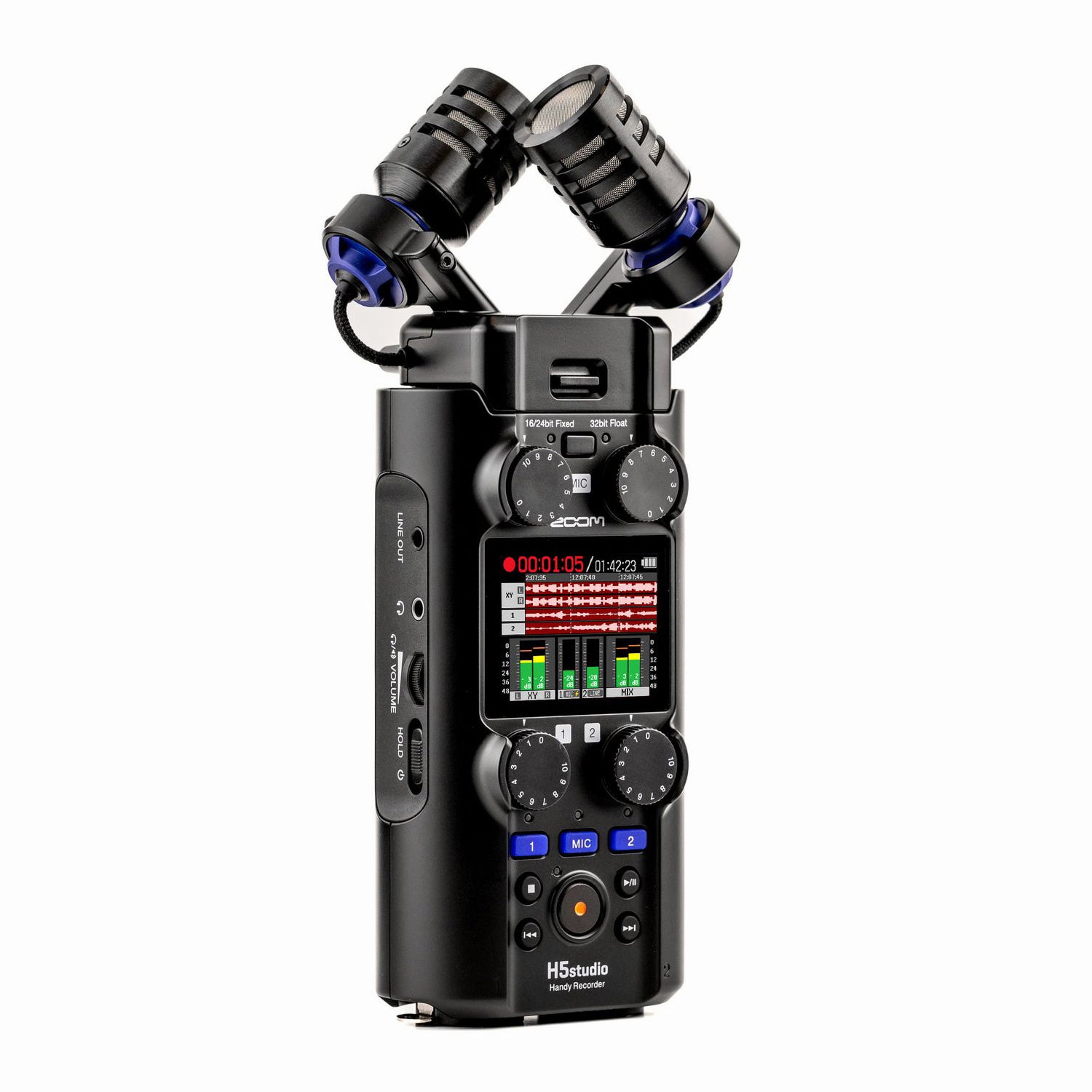

Zoom H5 Studio
-
I've been a big fan of the Zoom H5 for years. If you've ever listened to any of our demo videos, you've heard that mic in action—other than the first few, they were all recorded with Zoom H5s. When I saw that Zoom had updated the H5 with this H5 Studio, I couldn't wait to try it out.
And what an update this is: the biggest mics on any Zoom portable (and new, larger rubber feet to accommodate them), new level dials for the two external mic inputs, a snazzy new color LCD with clearer level displays. But far and away the best part of this mic is the addition of 32-bit Float. Zoom has slowly been adding it to some of its other mics, but the H5 really comes out on top of all of these. If you've never used it, 32-bit Float effectively eliminates clipping, which means you don't have to worry about input gain—you just turn it on and hit record. You do need software that will process the files, but nowadays, that pretty much every DAW can, as well as most video editors (which is where I use it the most).
-
INPUTS
XYH-5s: 90º XY stereo format
Pickup pattern: Unidirectional
Sensitivity: –41 dB/Pa at 1 kHz
Maximum sound pressure input: 140 dB SPL
MIC/LINE IN: XYH-5s
Connector: 1 stereo mini jack
Input gain: −∞ – +60 dB
Input impedance: 2 kΩ or more
Plug-in power: 2.5 VMIC/LINE (mono)

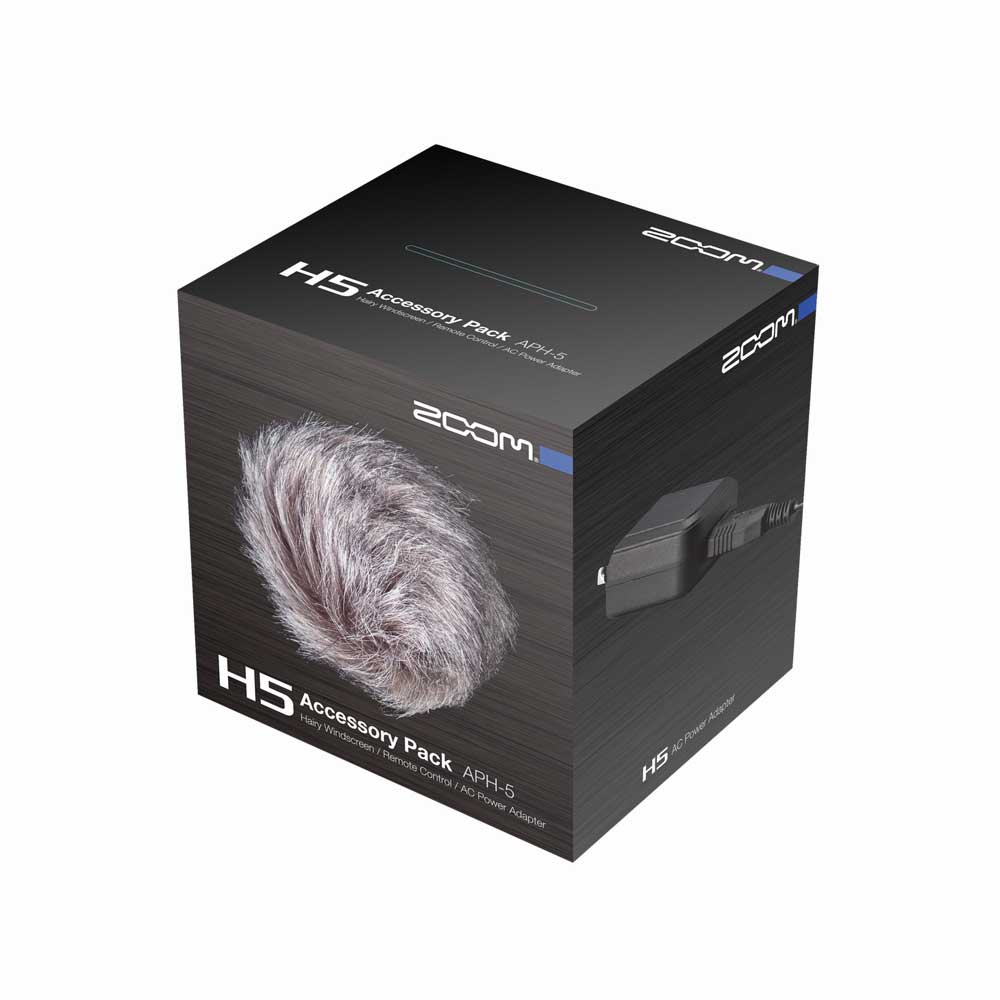

This mic can also be shipped with the APH-5 accessory kit, which includes a deadcat, carrying bag, and USB cable.
Connectors: 2 XLR/TRS combo jacks
Input gain: −∞ – +60 dB
Input impedance MIC: 3 kΩ or more
Input Impedance LINE: 3 kΩ or more
Maximum input level MIC: +4 dBu
Maximum Input Leve LINE: +24 dBu
Phantom power: +48 V
Equivalent input noise: –127 dBu or less (IHF-A) at 150Ω input
LINE OUT
Connector 1 stereo mini jack
Maximum output level +1 dBu
Output impedance 110 Ω or less
Headphone Connector 1 stereo mini jack
Maximum output level 20 ｍW + 20 ｍW（when 32 Ω load）
Output impedance 10 Ω or less
Built-in speaker Type 20 mm x 30 mm elliptical dynamic speaker
Effective maximum output 250 mW
RECORDER
Maximum simultaneous recording tracks 6
Maximum simultaneous playback tracks 4
Recording formats WAV
44.1/48/96/192 kHz,
16-bit/24-bit/32-bit float
mono/stereo
BWF and iXML formats supported
Recording media microSDHC memory cards / microSDXC memory cards
DISPLAY
2.00" full-color LCD 320 x 240
USB
Connector USB Type-C
Audio Interface USB 2.0 High Speed
Input and output channels 4 in / 2 out (Multi) / 2 in / 2 out (Stereo)
Sampling frequencies 44.1/48/96 kHz (audio interface only) / 44.1/48 kHz (audio interface + onboard recording)
Bit depths 24-bit, 32-bit float
File transfer USB 2.0 High Speed
POWER
4 AA batteries Alkaline, lithium or rechargeable NiMH batteries
AC Adapter ZOOM AD-17 (DC 5 V/1 A)
• USB bus power is supported.
ESTIMATED CONTINUOUS OPERATION TIMES USING BATTERIES : 2-track (XYH-5s) recording:
Alkaline batteries About 15 hours
NiMH batteries (1900 mAh) About 13 hours
Lithium batteries About 21 hours
Power consumption 5 W maximum
Dimensions 86.0 mm (W) × 206.0 mm (D) × 54.6 mm (H)
Weight 410 g (including batteries)
